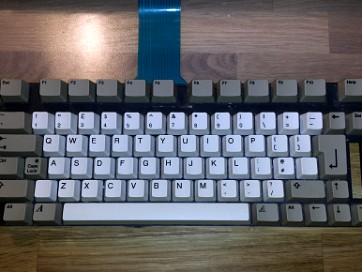

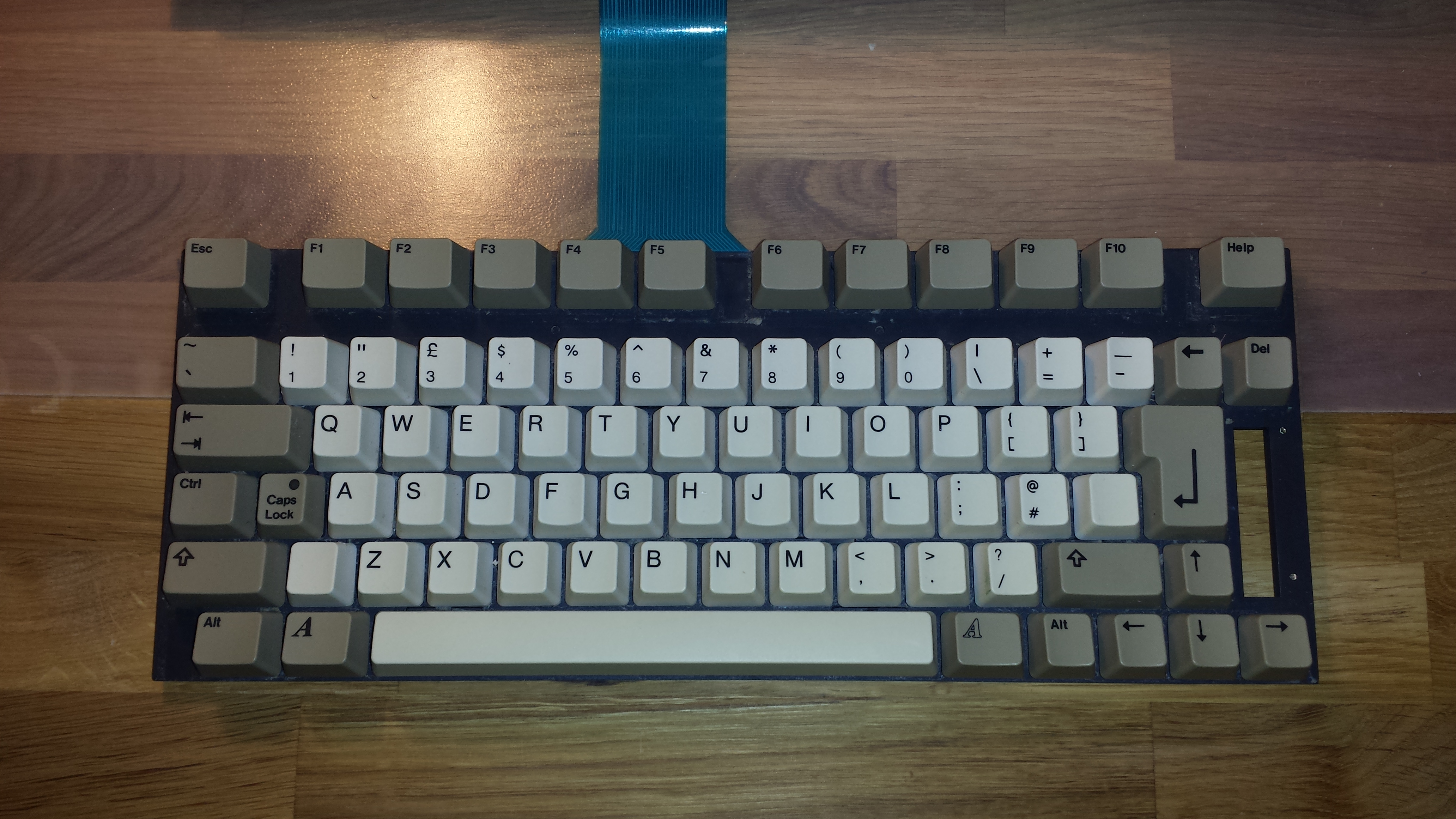

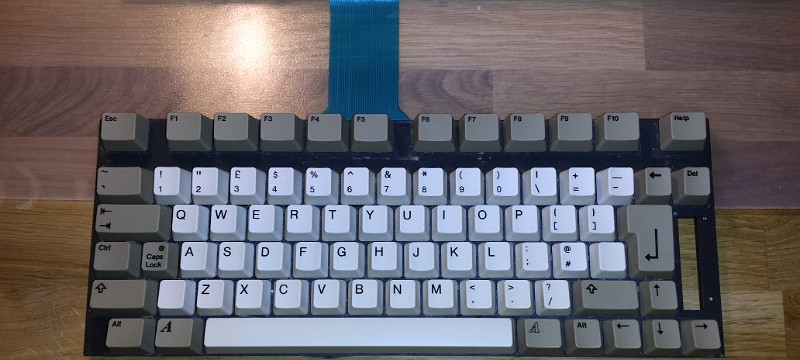

eX_Amiga_600_Keyboard_01 Amiga 600 keyboard.
1
Amiga 600 keyboard.

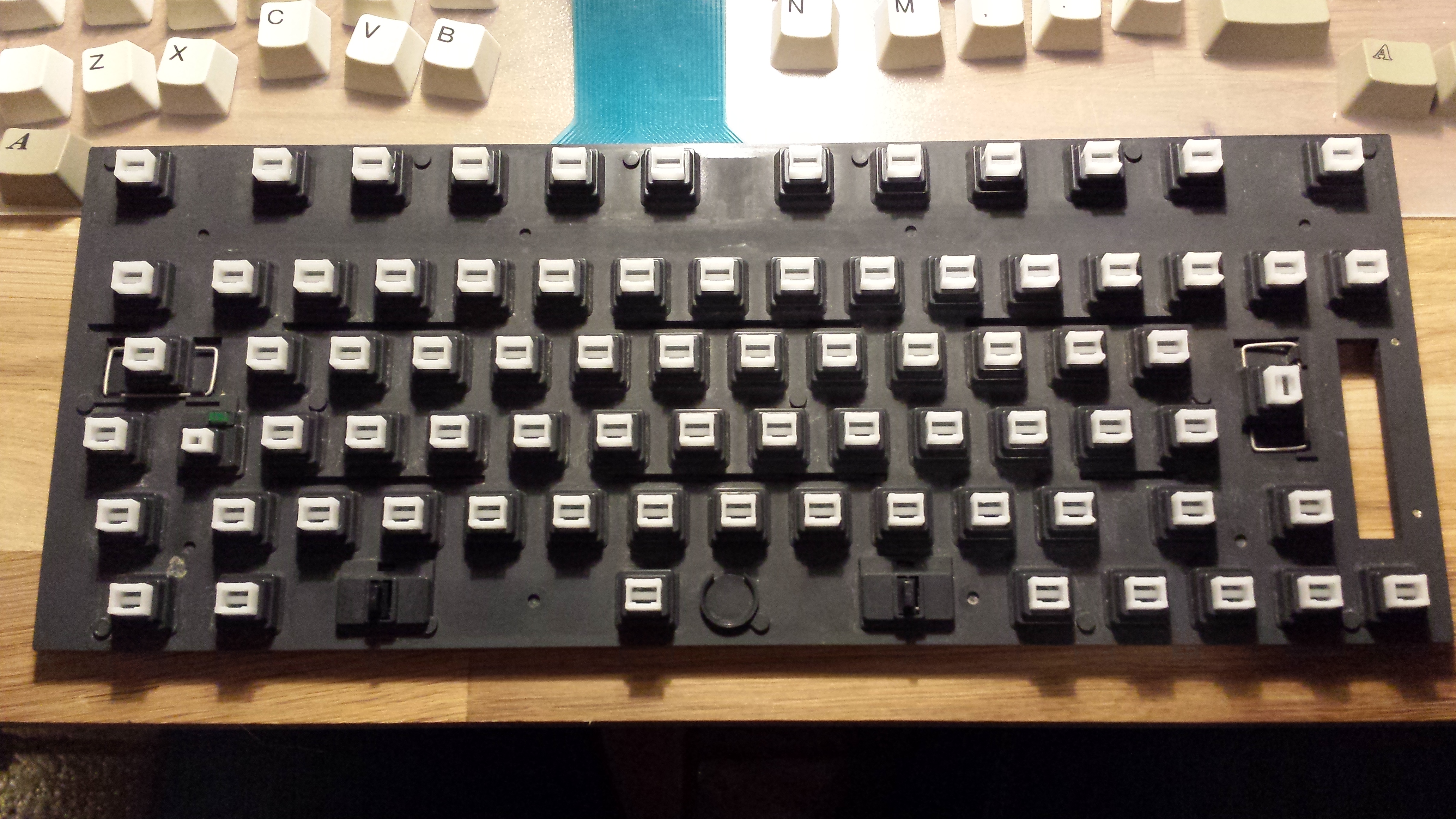

eX_Amiga_600_Keyboard_Strip_01 Amiga 600 keyboard with key caps stripped.
2
Amiga 600 keyboard with key caps stripped.

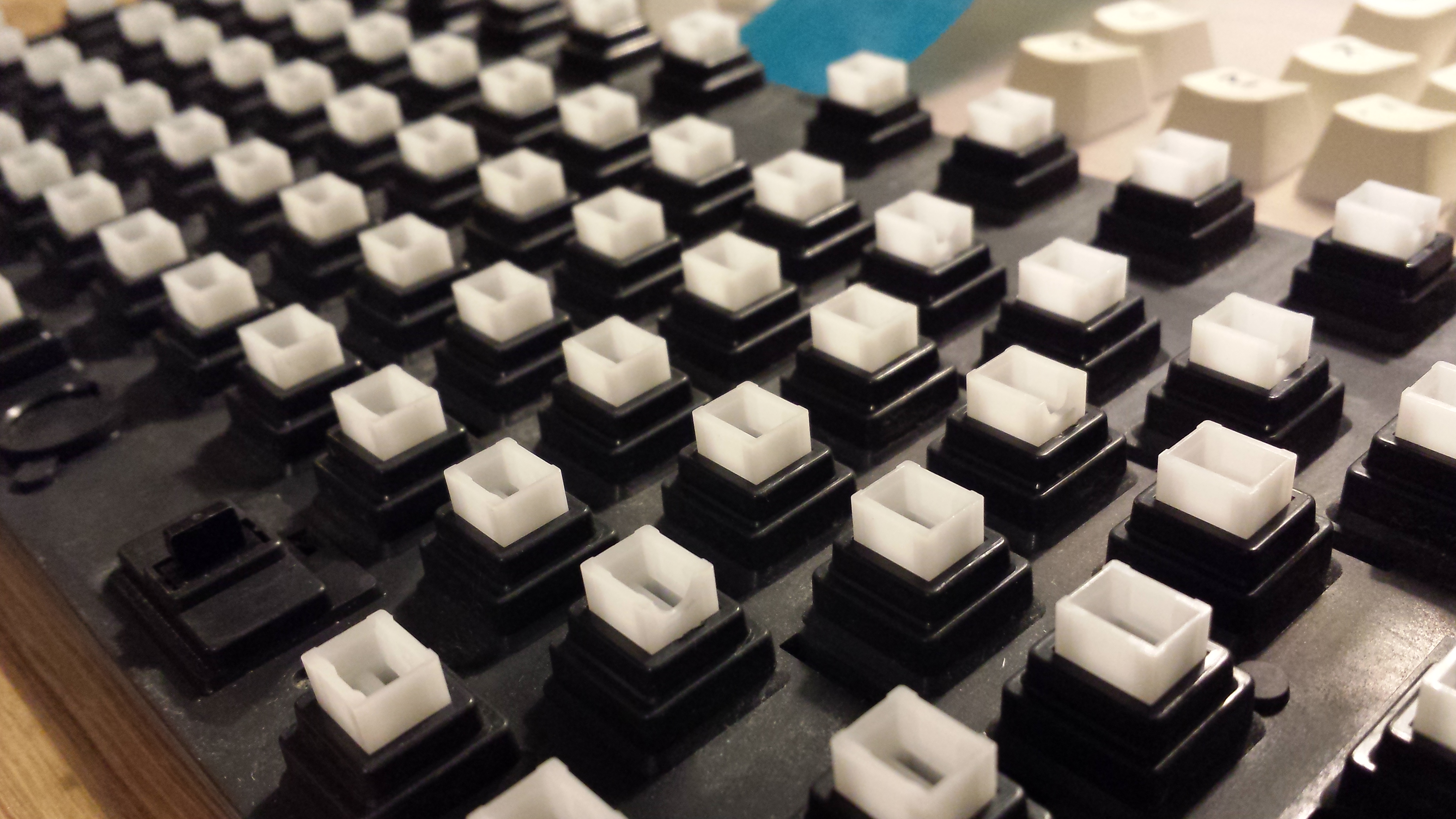

eX_Amiga_600_Keyboard_Strip_02 If you compare this Amiga 600 keyboard to an A500 or A1200 keyboard, you'll notice there are no springs used under the key caps (well, spacebar has one…
3
If you compare this Amiga 600 keyboard to an A500 or A1200 keyboard, you'll notice there are no springs used under the key caps (well, spacebar has one…

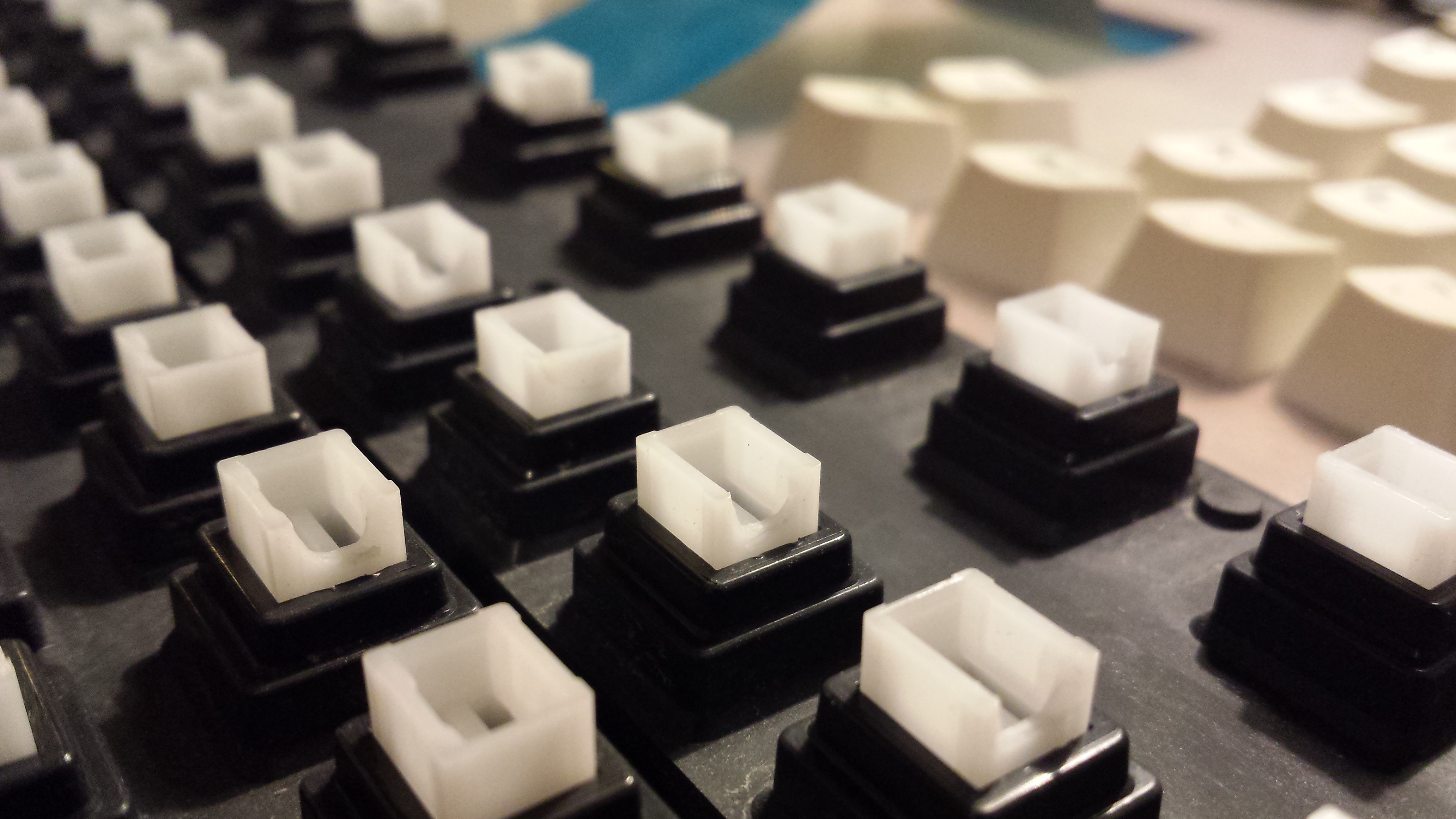

eX_Amiga_600_Keyboard_Strip_03 Not sure if this is a common issue on A600 keyboards, but check out the holes on the sides of some of those whiote plastic ... switches? The keys will still…
4
Not sure if this is a common issue on A600 keyboards, but check out the holes on the sides of some of those whiote plastic ... switches? The keys will still…

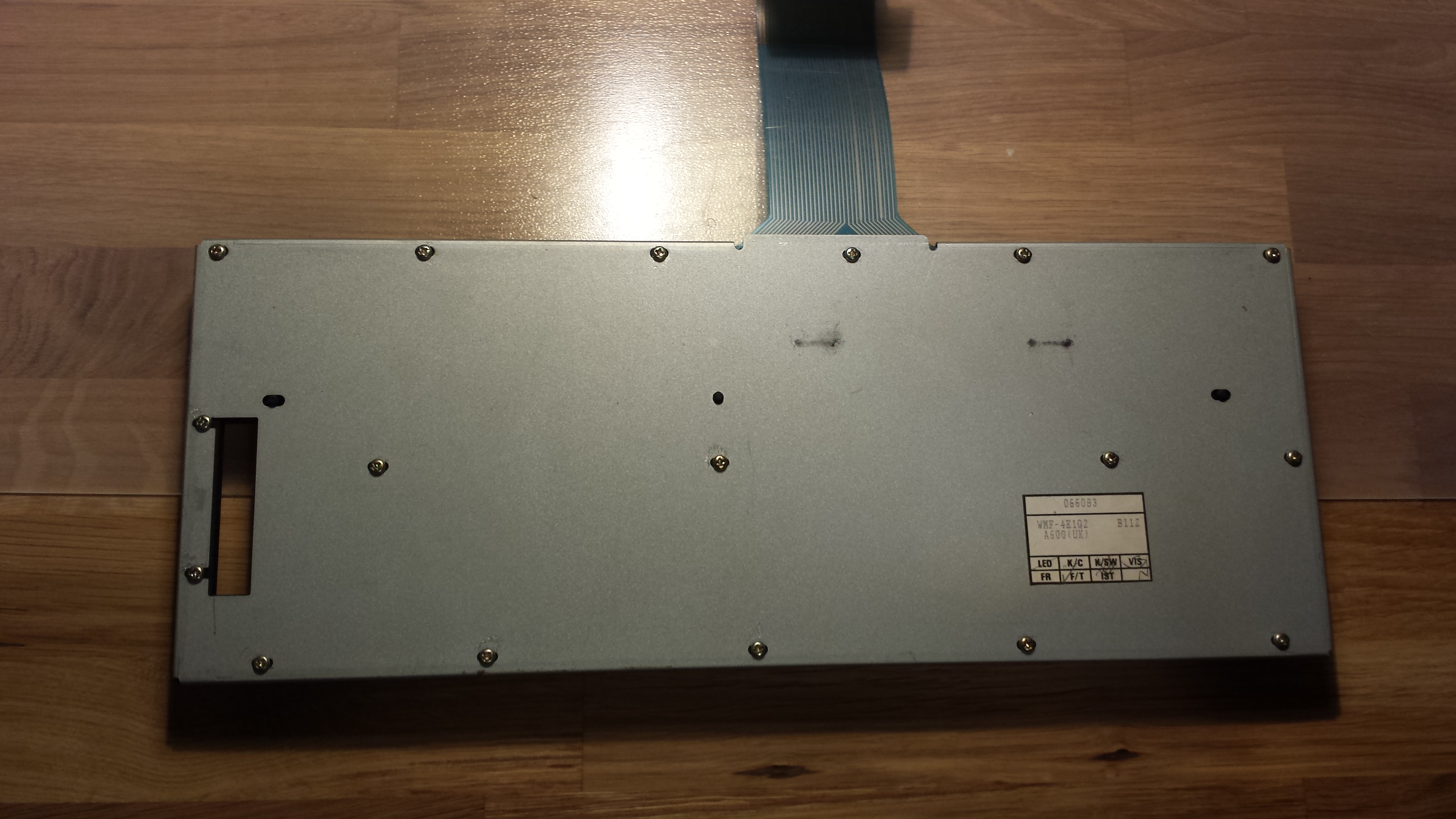

eX_Amiga_600_Keyboard_02 The rather un-interesting back side of an A600 keyboard.
5
The rather un-interesting back side of an A600 keyboard.

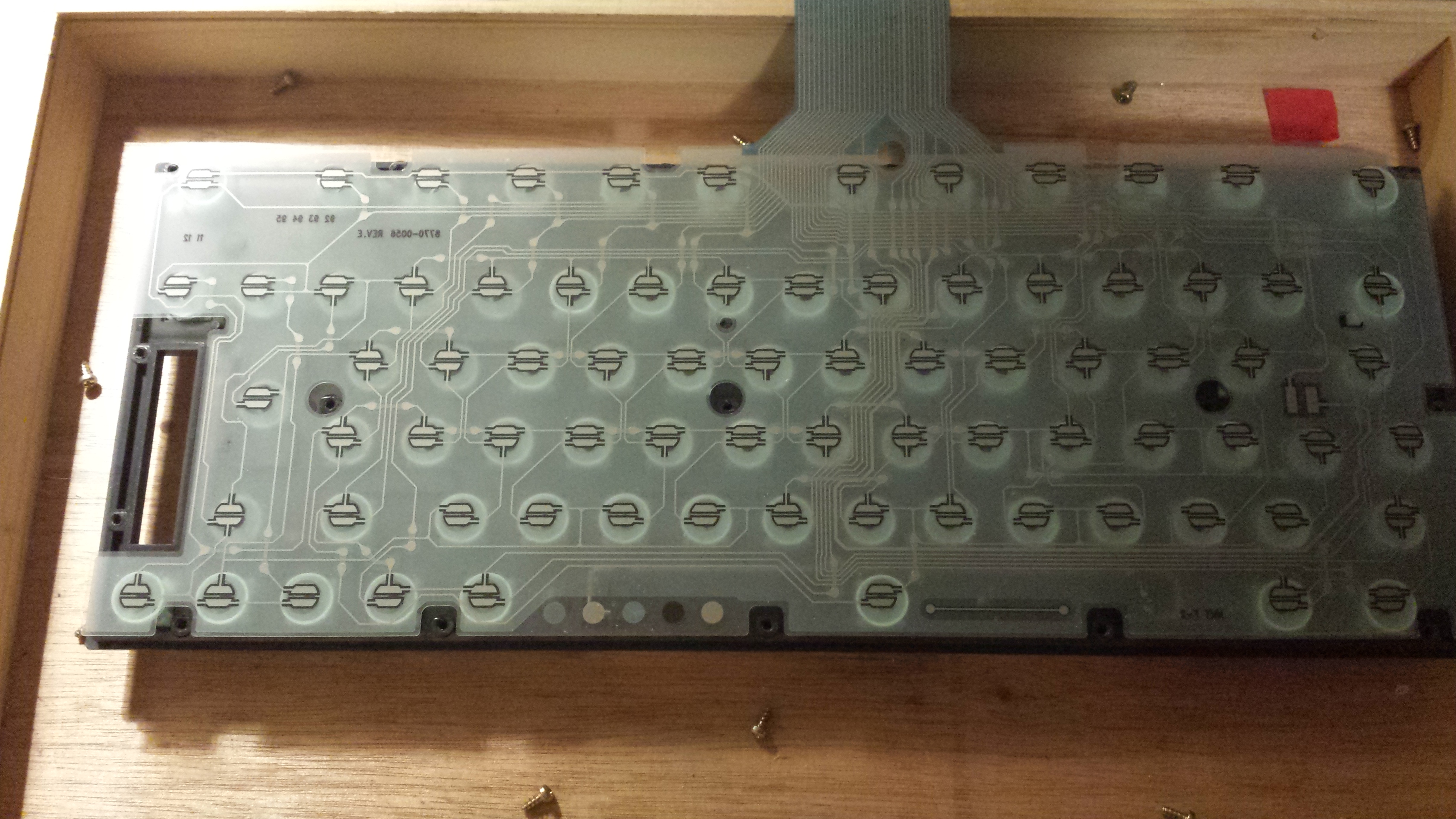

eX_Amiga_600_Keyboard_Opened_01 This is what you see if you remove the back plate of an Amiga 600 keyboard. (After removing something like 18 small screws).
6
This is what you see if you remove the back plate of an Amiga 600 keyboard. (After removing something like 18 small screws).

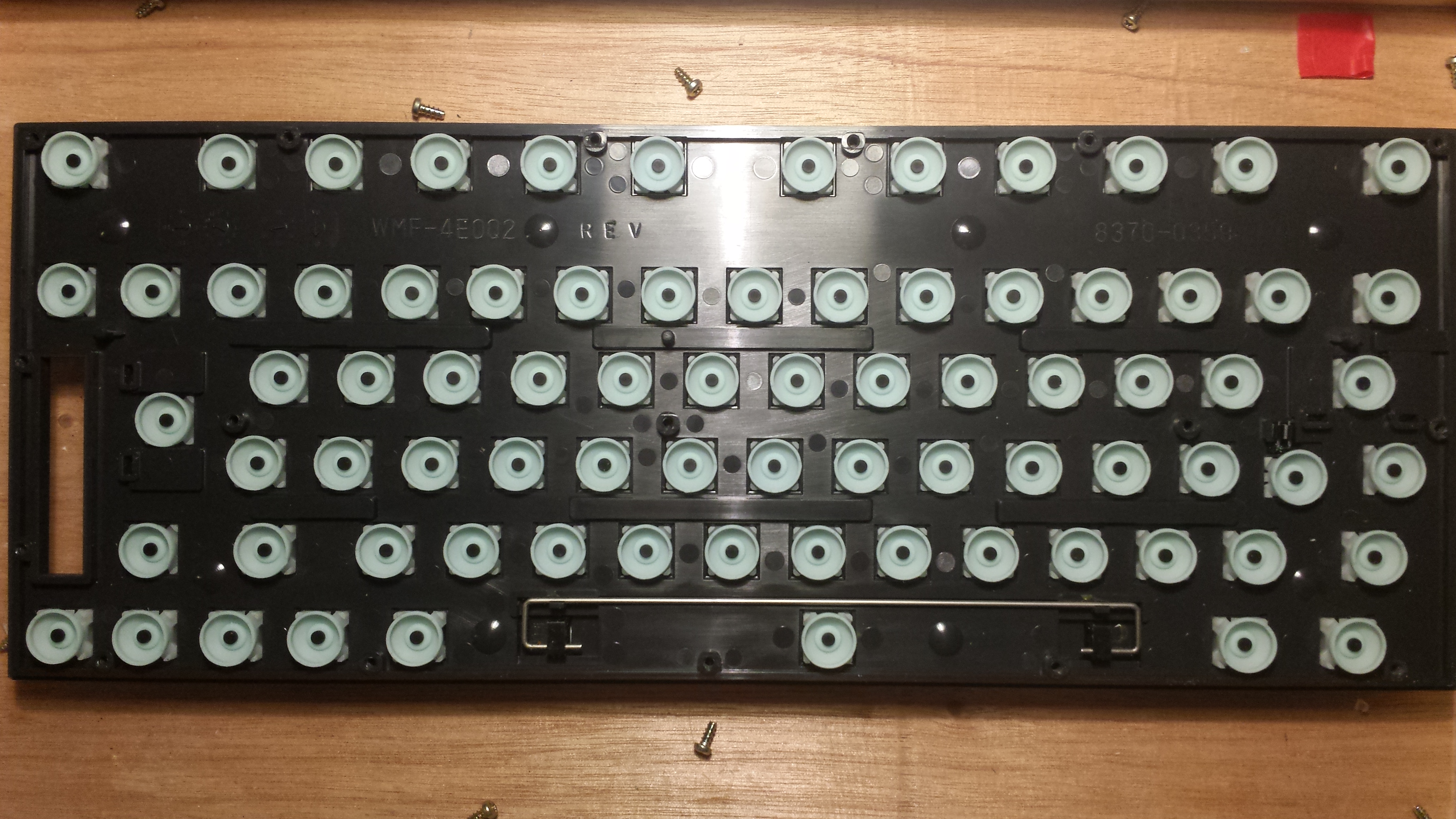

eX_Amiga_600_Keyboard_Strip_04 Here is the cheaper solution Commodore used for the A600 keyboard. No springs are used, so the
7
Here is the cheaper solution Commodore used for the A600 keyboard. No springs are used, so the "bounce-back" comes from these tiny rubber membrane things you…

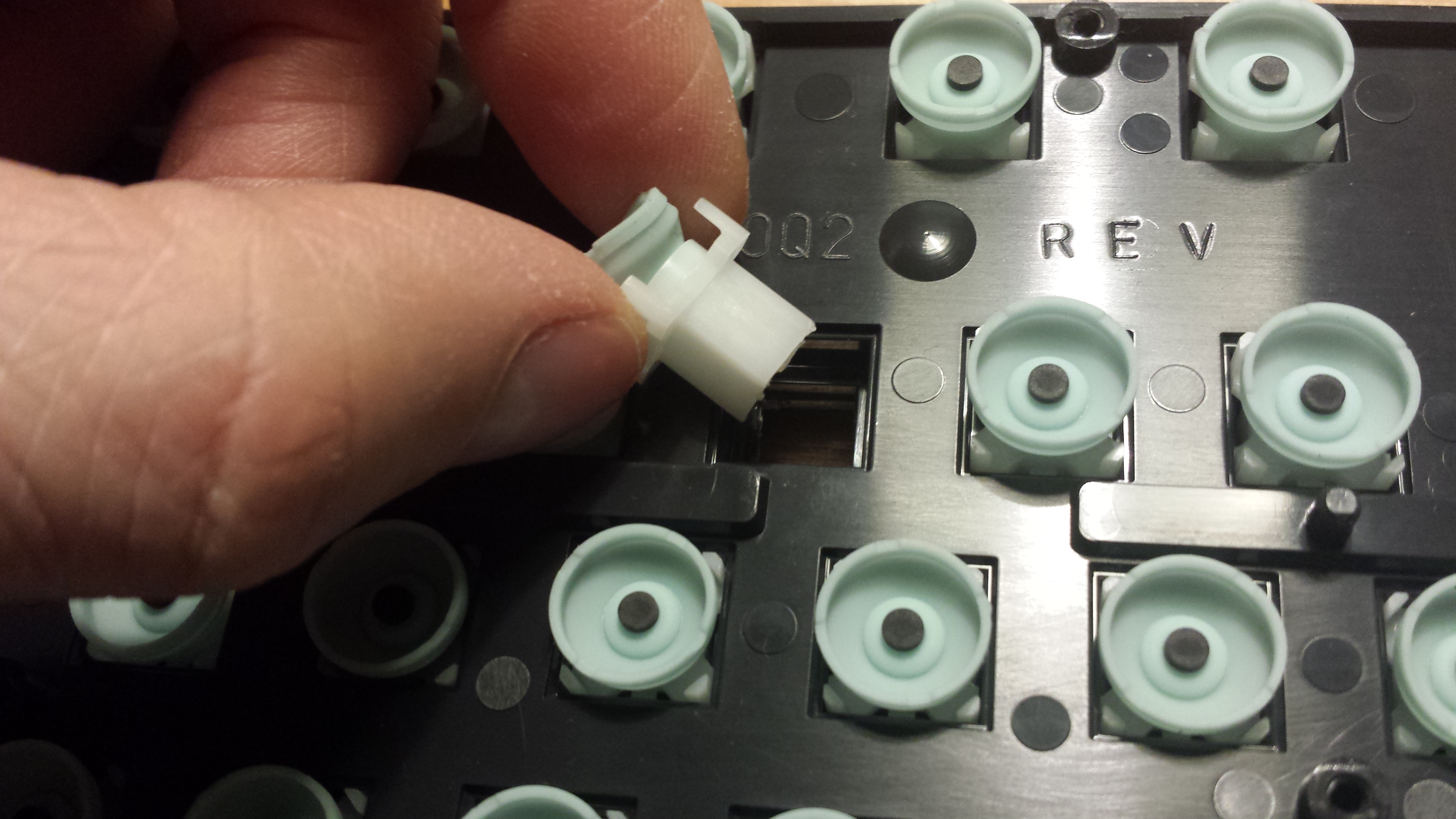

eX_Amiga_600_Keyboard_Switches_01 Close-up of the rubber/plastic switches used for A600 keys.
8
Close-up of the rubber/plastic switches used for A600 keys.

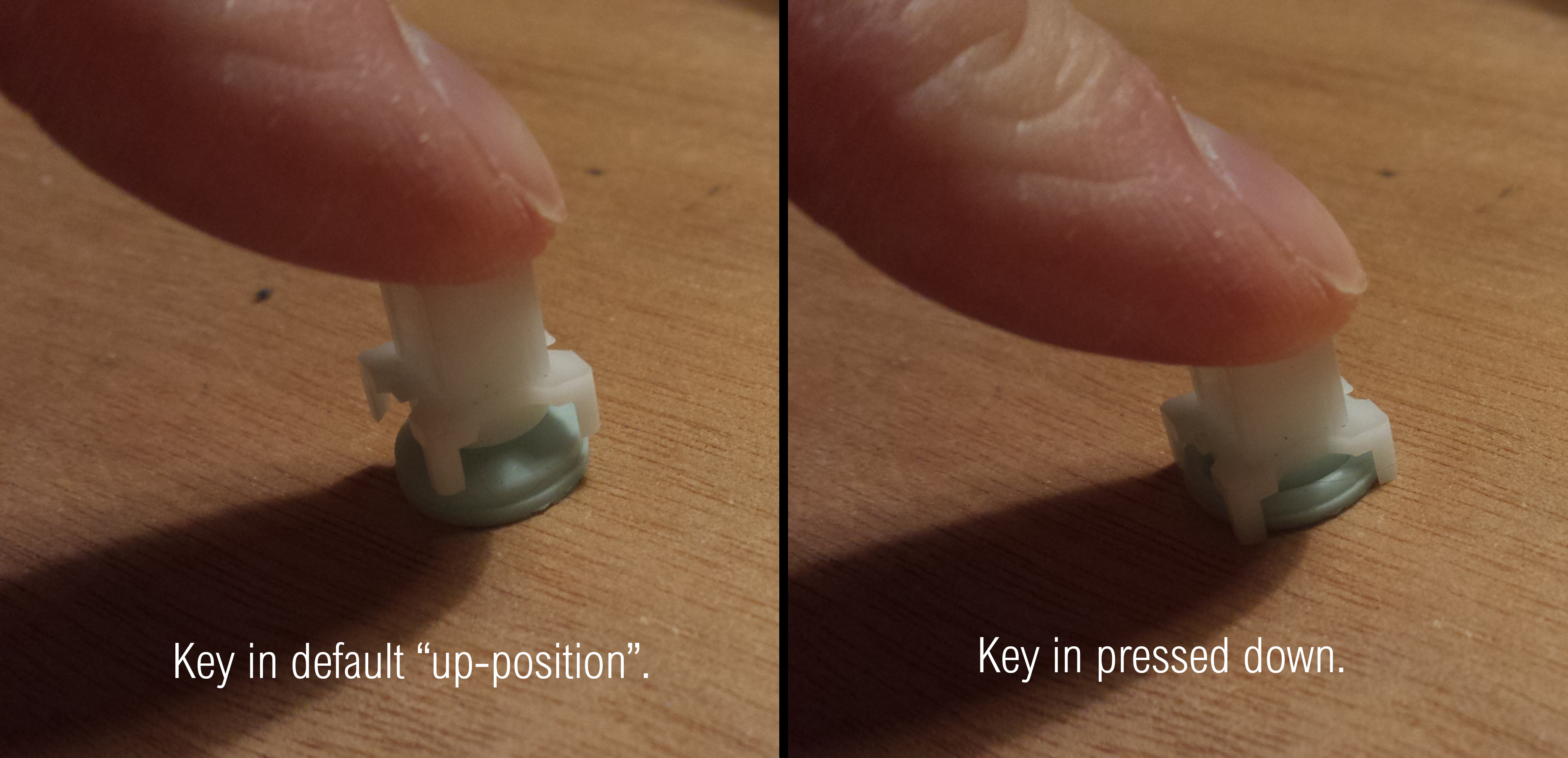

eX_Amiga_600_Keyboard_Switches_02 Amiga 600 key switches.
9
Amiga 600 key switches.

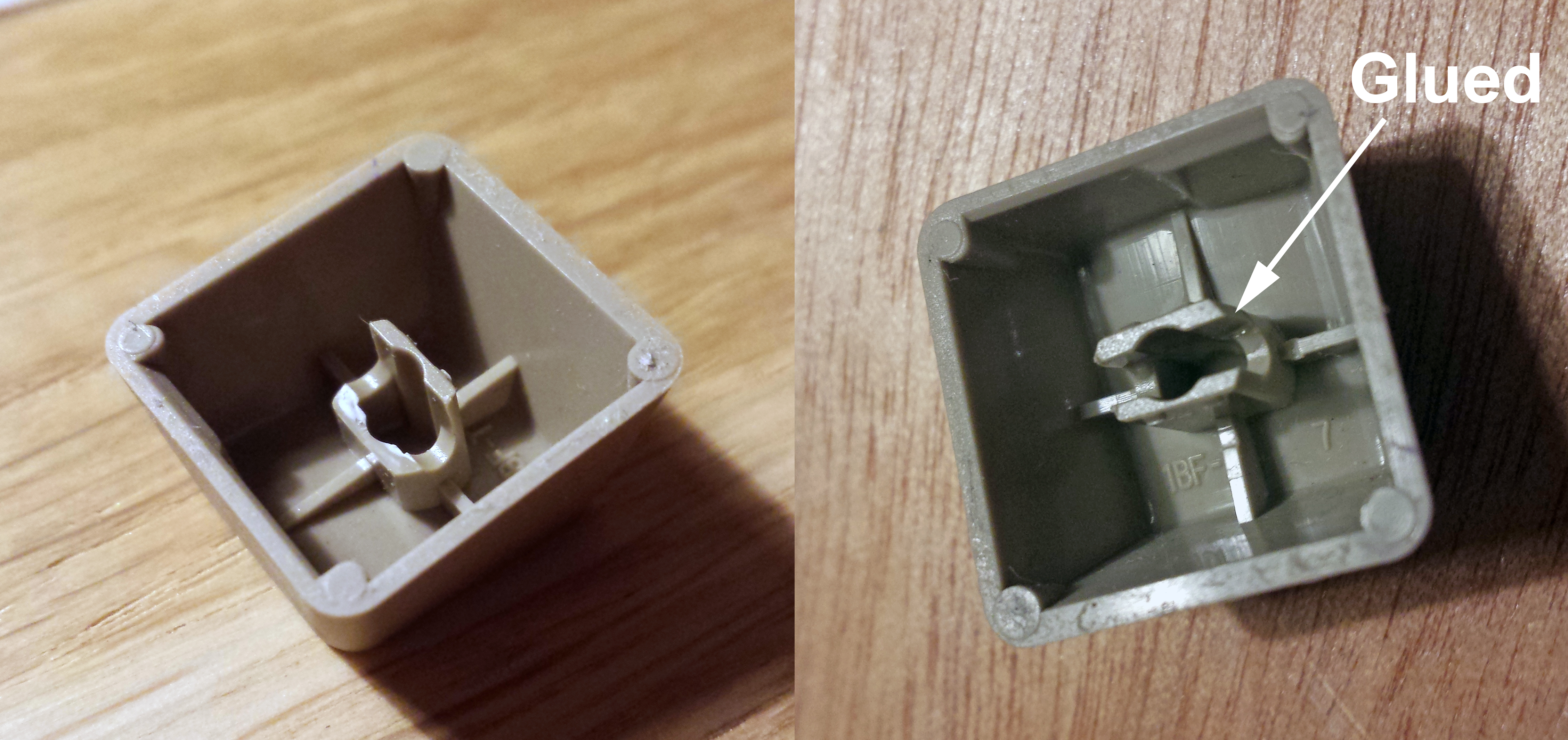

eX_Amiga_600_Keyboard_Caps_01 Here is another little problem you don't want to see happening to your Amiga keyboard. Considering the situation about keyboards from a computer that was made…
10
Here is another little problem you don't want to see happening to your Amiga keyboard. Considering the situation about keyboards from a computer that was made…
