PSU_comparison 21—29/05/16

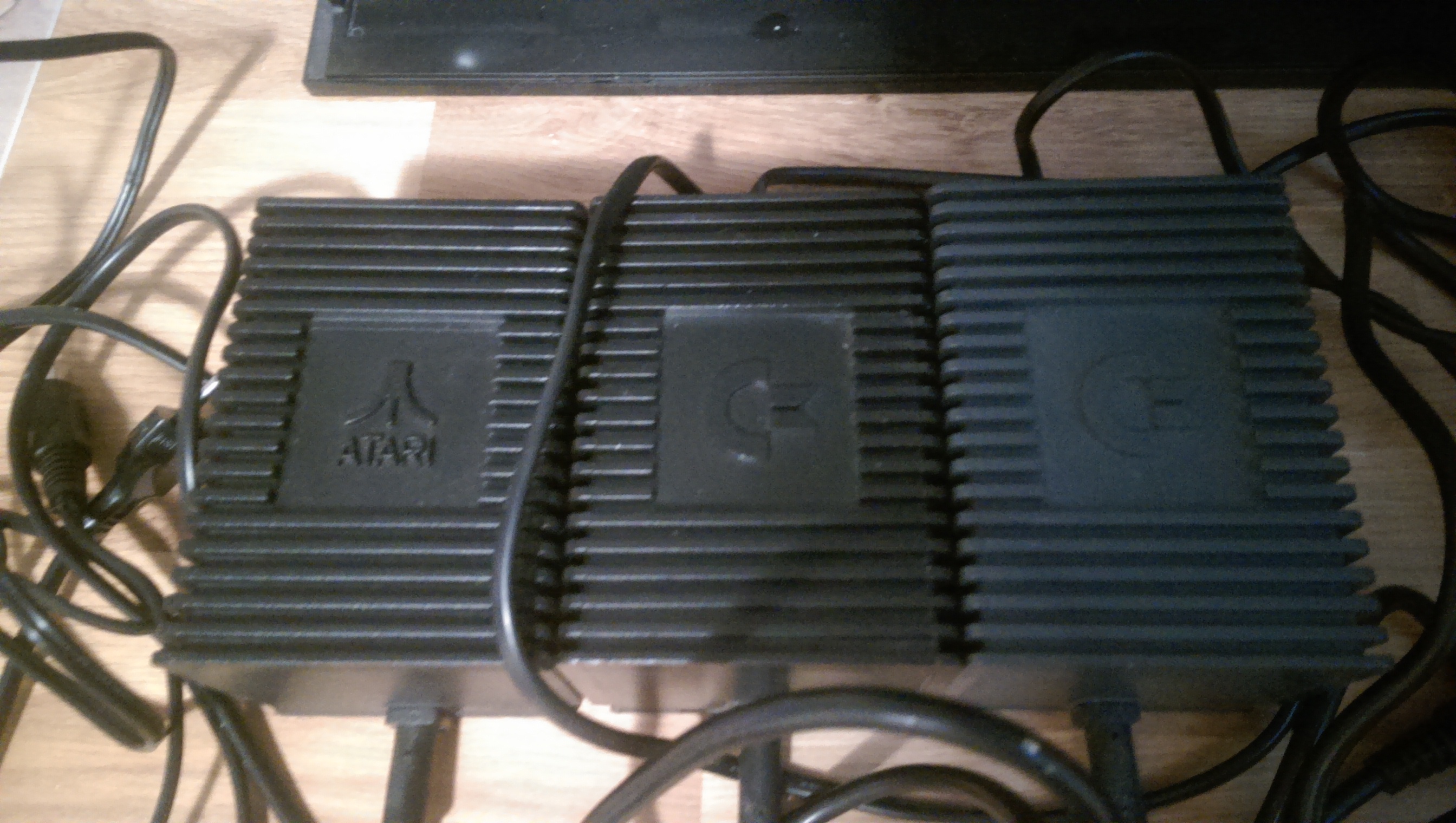

eX_3_PSUs_01 PSU for: Atari XEGS, CD32, CD32
1

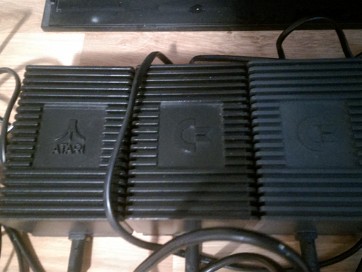

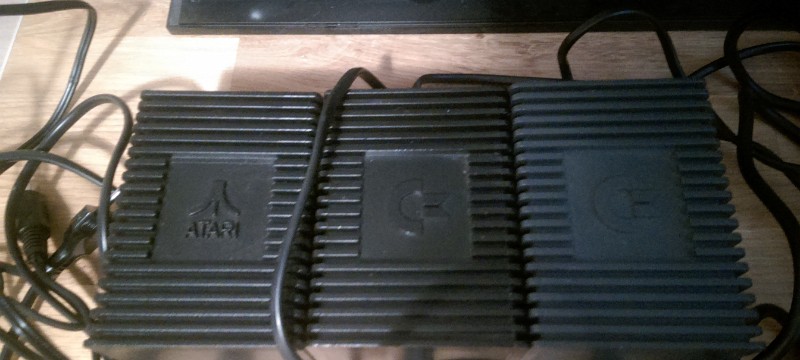

PSU for: Atari XEGS, CD32, CD32

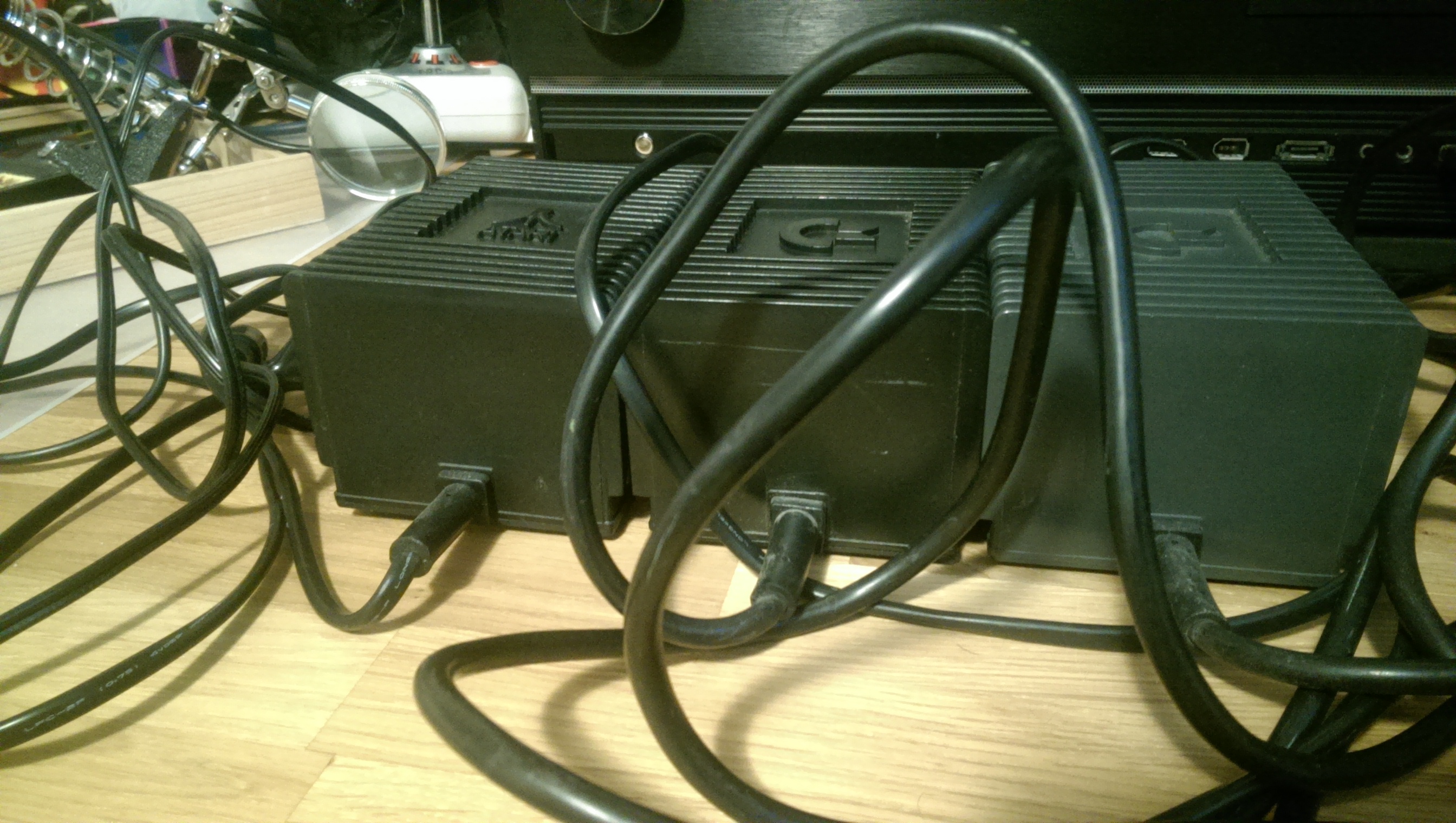

eX_3_PSUs_02 As you can see here, both the Atari and the Commodore PSUs are made from the same base molds. although they differ in the small
2
As you can see here, both the Atari and the Commodore PSUs are made from the same base molds. although they differ in the small "embossed" details such as logos…

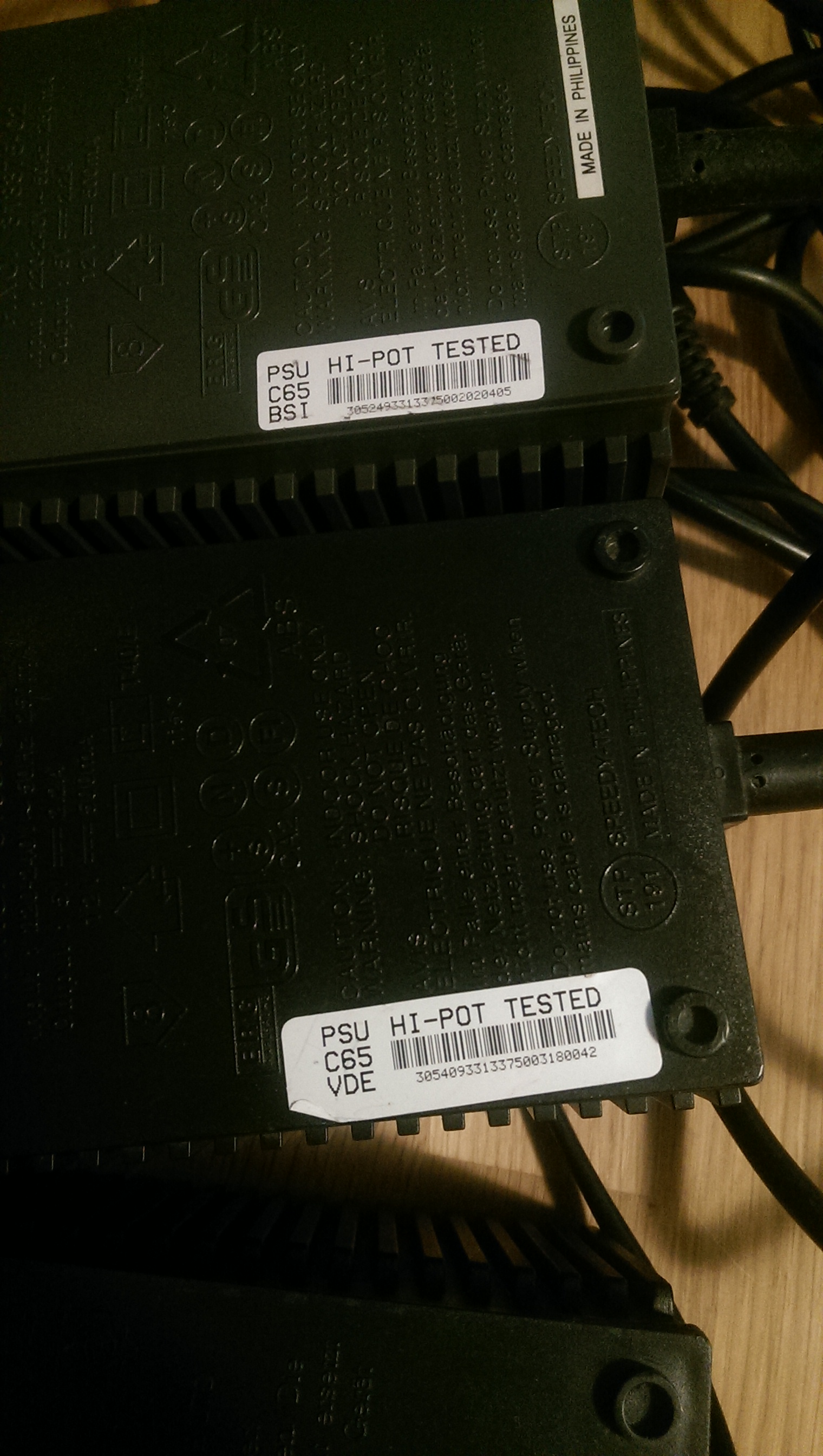

eX_CommodoreCD32_PSUs_back_01 Both CD32 PSUs have labels that say
3
Both CD32 PSUs have labels that say "C65".

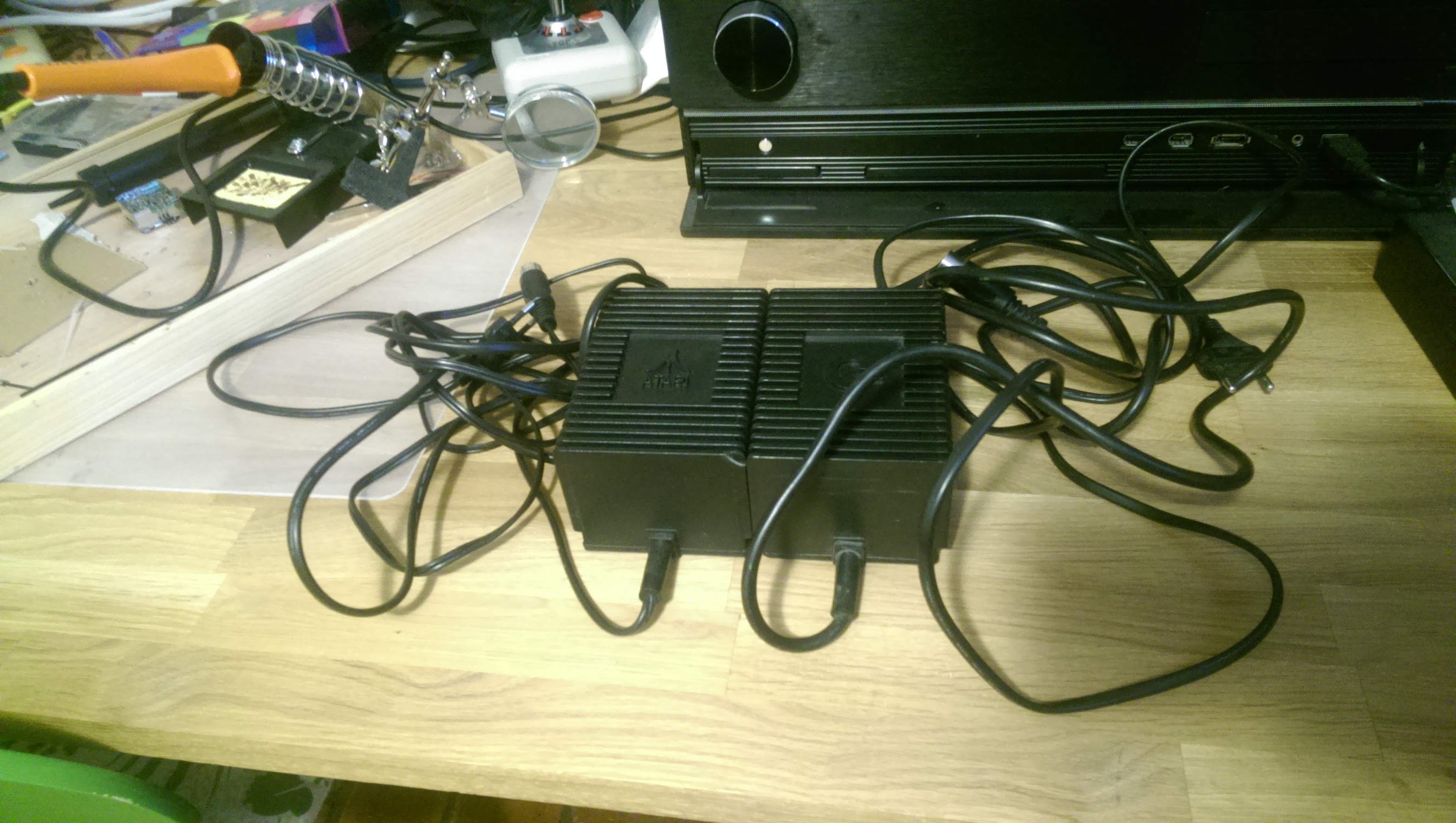

Atari_vs_Commodore_PSU_01 Another side by side. Atari PSU to the left, Commodore to the right. Both have roundconnectors, although the Atari version has more pins.
4
Another side by side. Atari PSU to the left, Commodore to the right. Both have roundconnectors, although the Atari version has more pins.

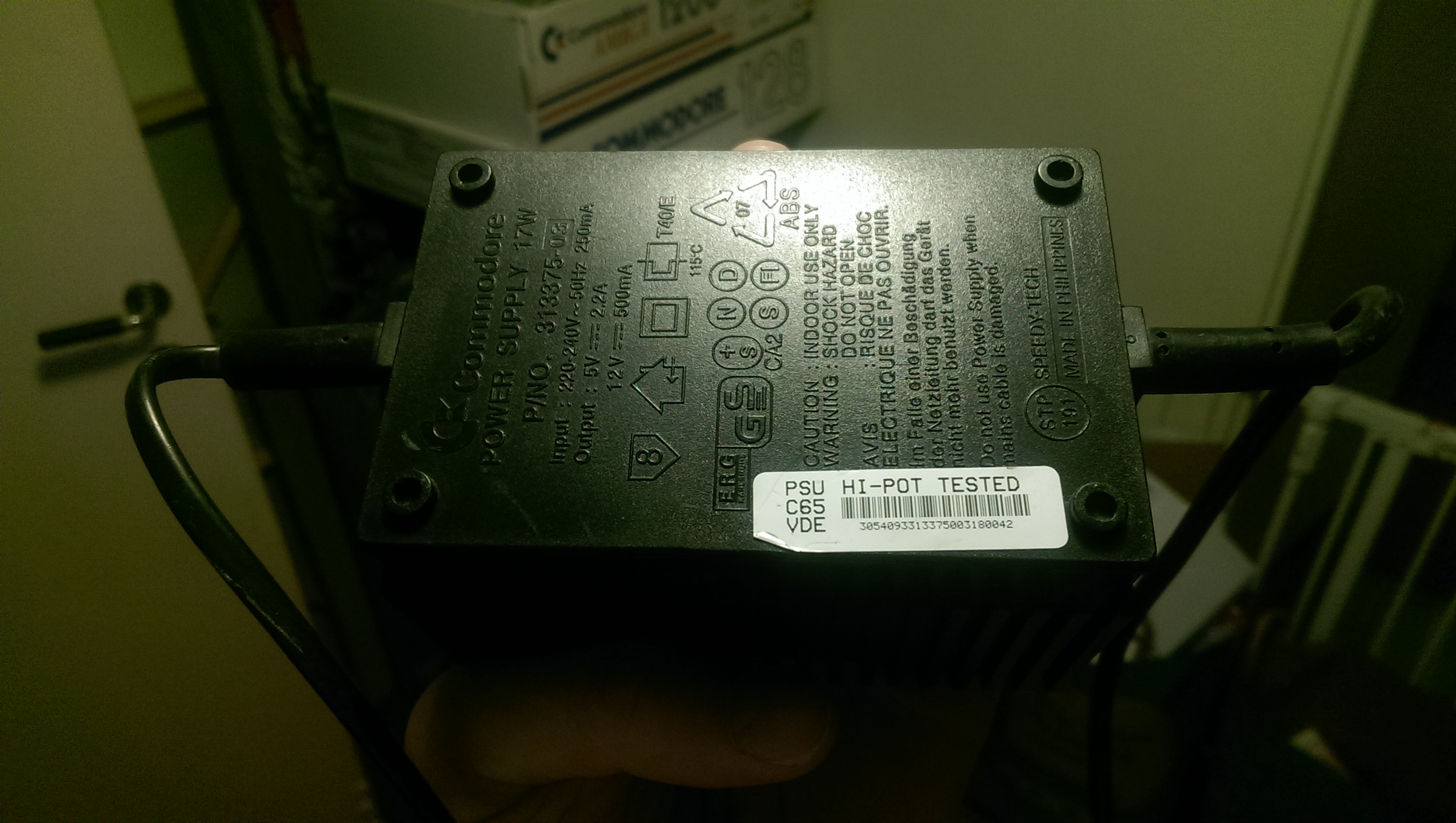

eX_CommodoreCD32_PSU_back_label_01 Commodore PSU rated at 17W, 2.2A @ 5V
5
Commodore PSU rated at 17W, 2.2A @ 5V

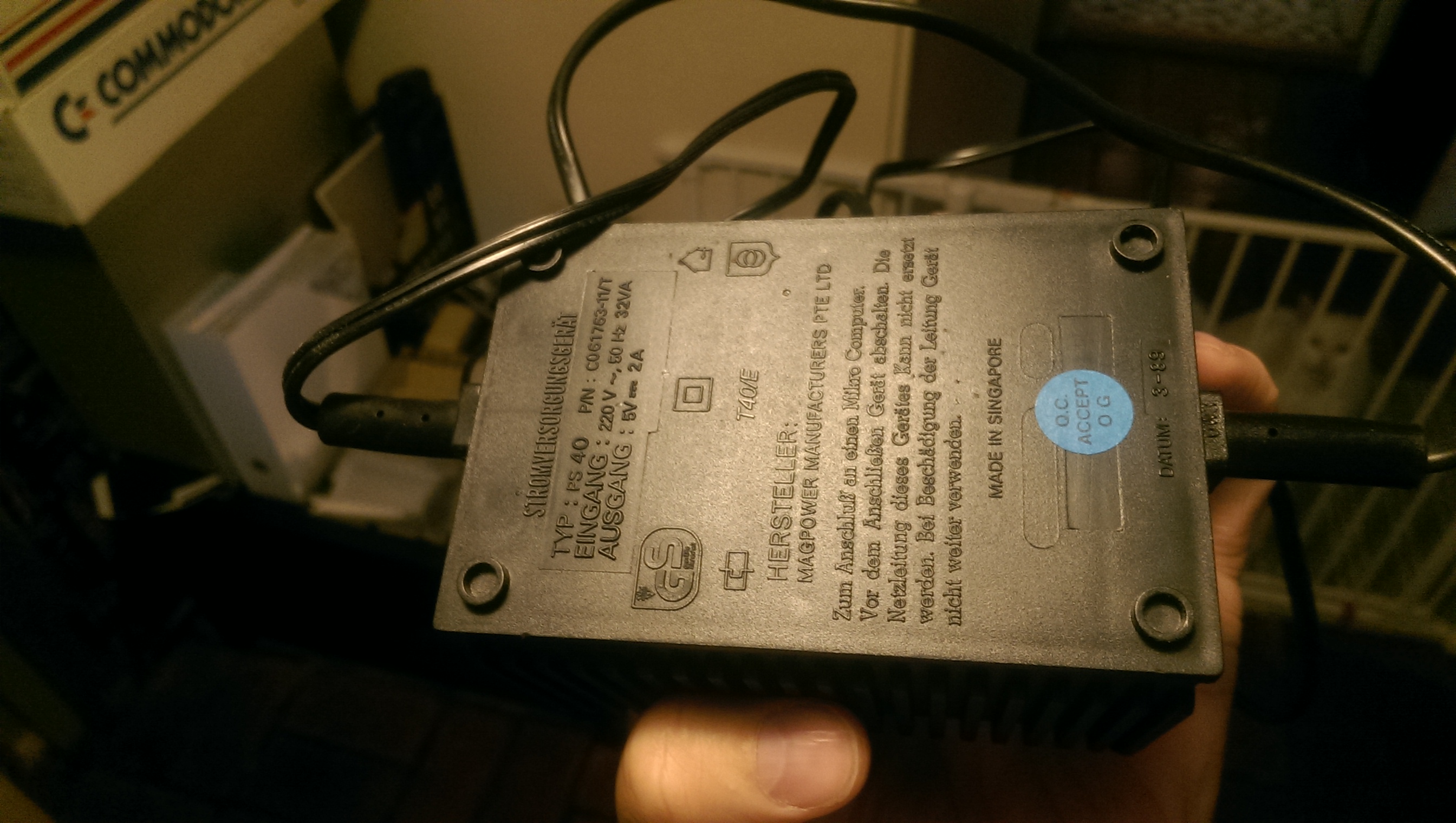

eX_AtariXEGS_PSU_back_label_01 Atari PSU labled 2A @ 5V.
6
Atari PSU labled 2A @ 5V.

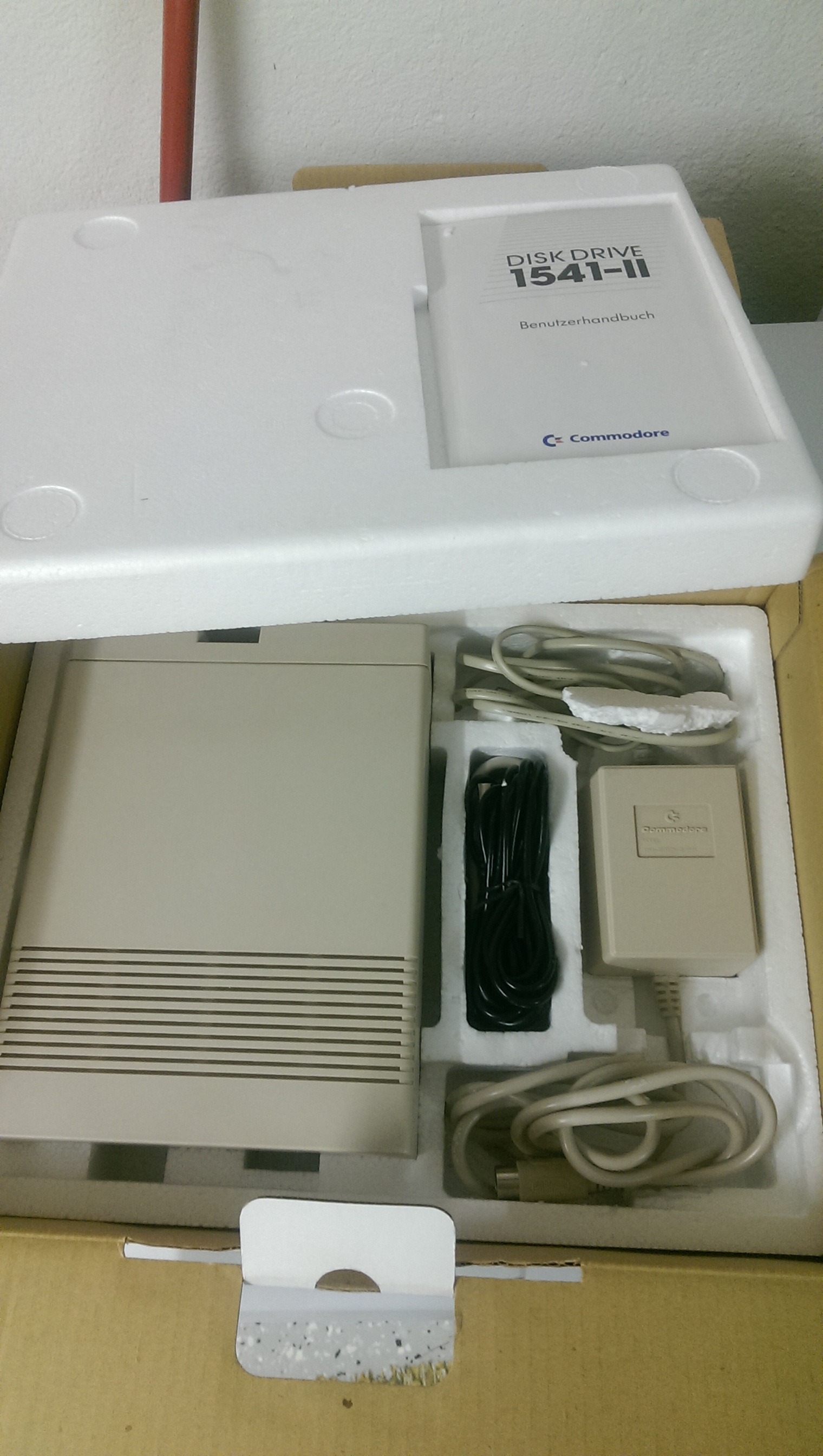

eX_Commodore1541_box A 1541 II drive in original box alongside the supplied PSU.
7
A 1541 II drive in original box alongside the supplied PSU.

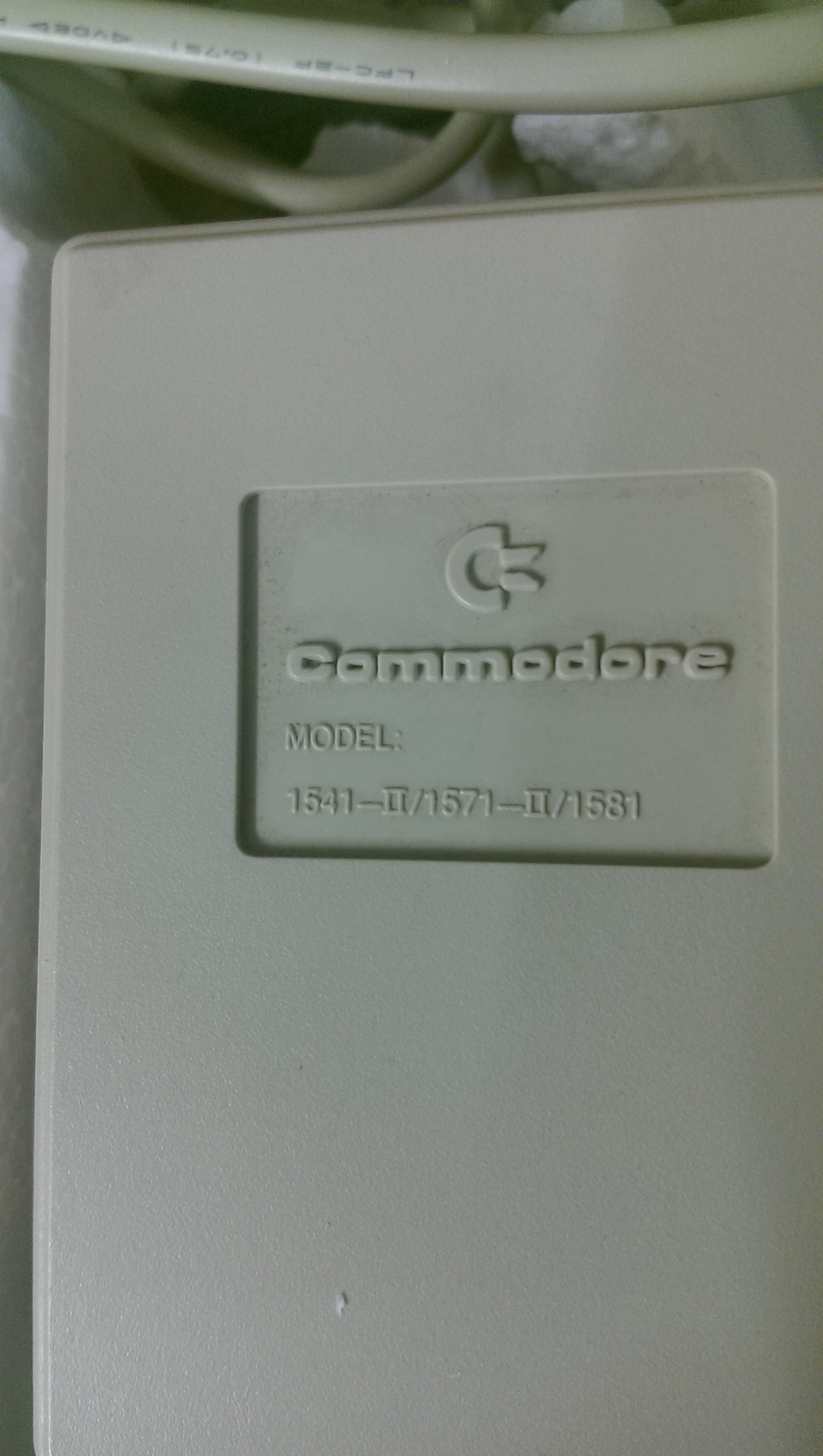

eX_Commodore1541_PSU_zoom01 Top label reads: Model 1541-II / 1571-II/1581
8
Top label reads: Model 1541-II / 1571-II/1581

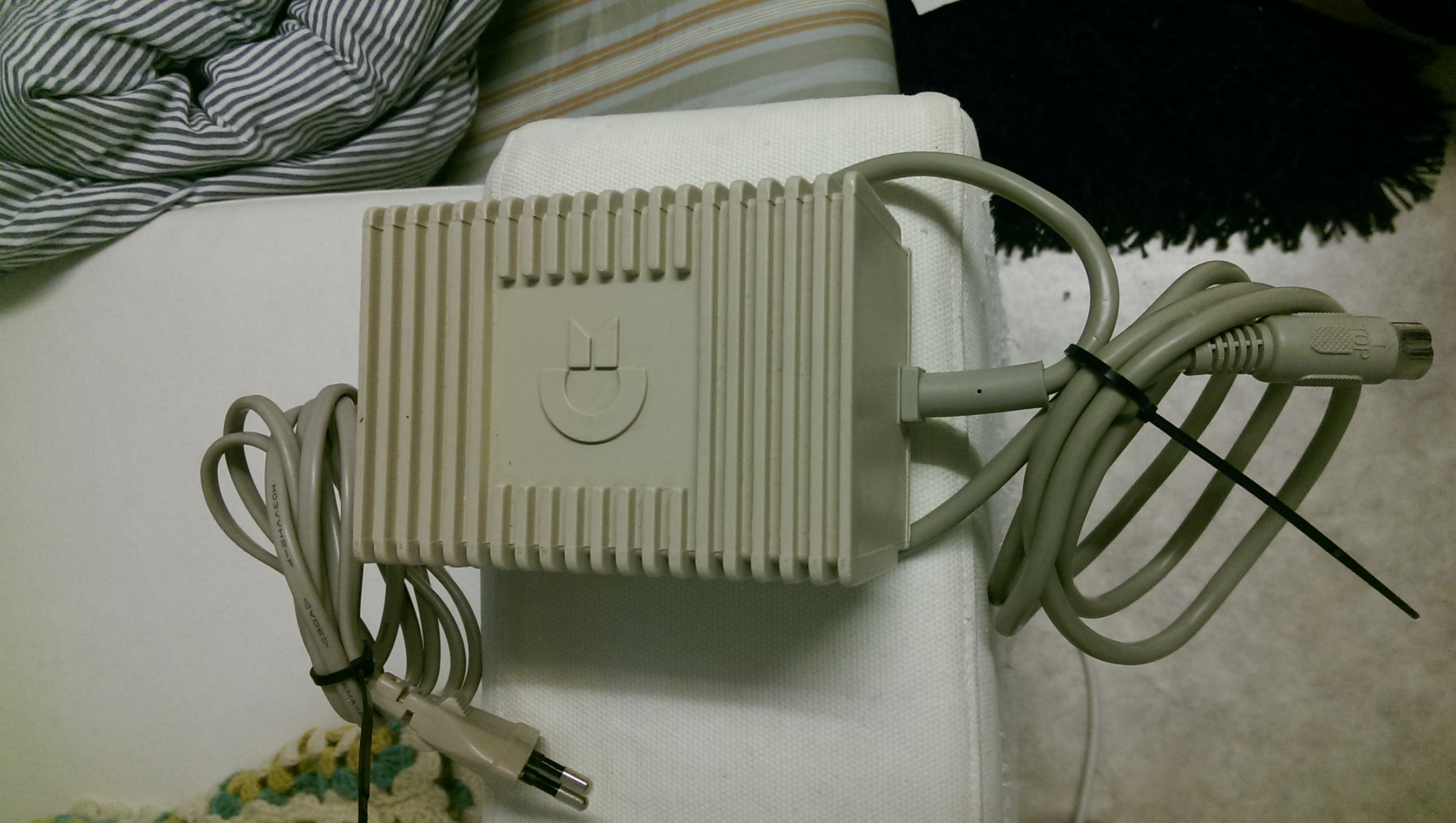

eX_C64G_PSU_1 We have more PSUs using that form factor, previously seen on Atari XEGES, Amiga CD32 etc.. This one is for the C64G. As you may know, the C64G was produced from…
9
We have more PSUs using that form factor, previously seen on Atari XEGES, Amiga CD32 etc.. This one is for the C64G. As you may know, the C64G was produced from…

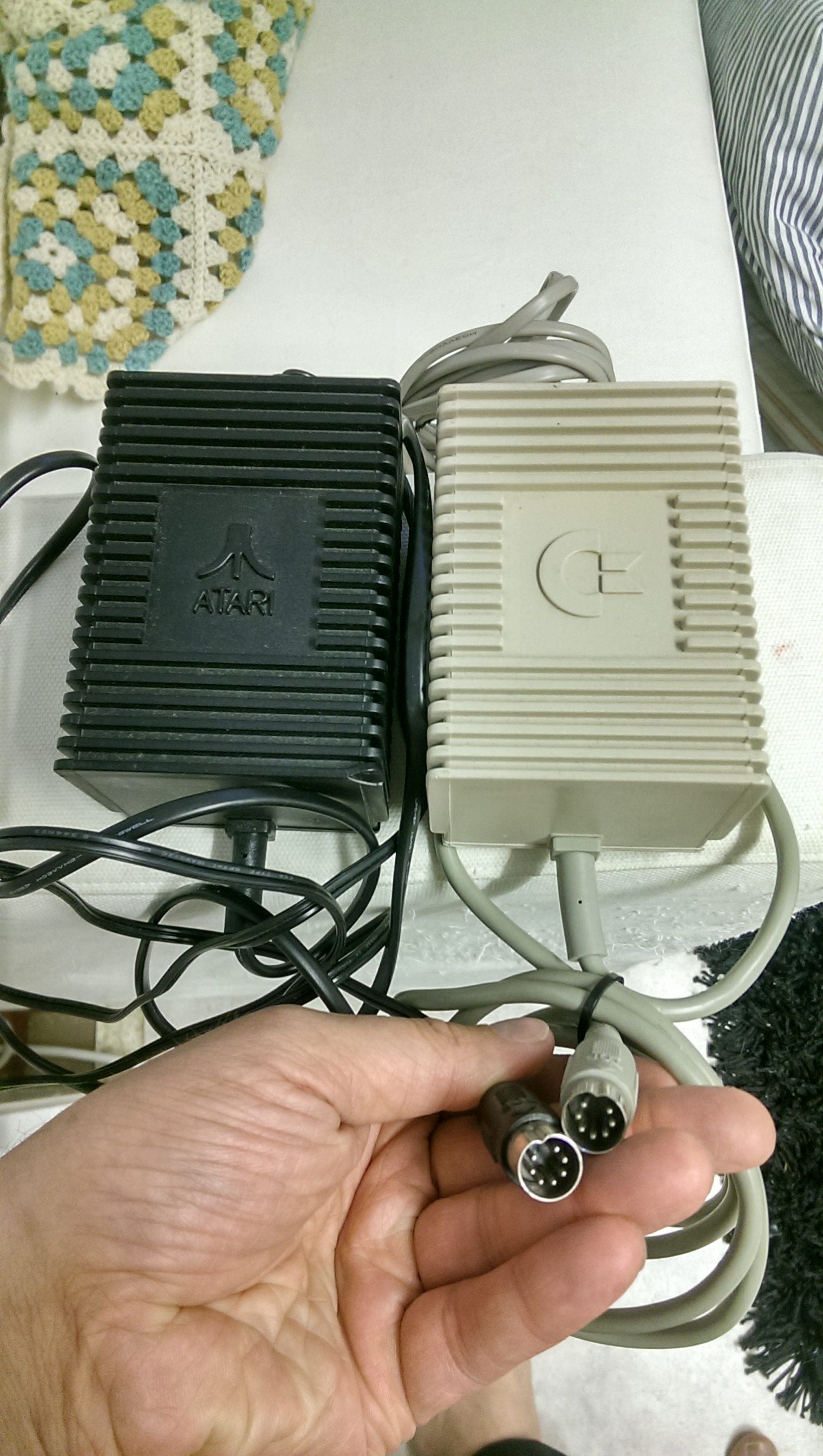

eX_C64G_vs Atari_XEGS_PSU_1 Here is a comparison between the Atari XEGS PSU (left) vs C64G PSU (right). Here, even the pins are identical. Both these PSUs are manufactured in Singapore.
10
Here is a comparison between the Atari XEGS PSU (left) vs C64G PSU (right). Here, even the pins are identical. Both these PSUs are manufactured in Singapore.
