PSU_dismantled 25/12/15

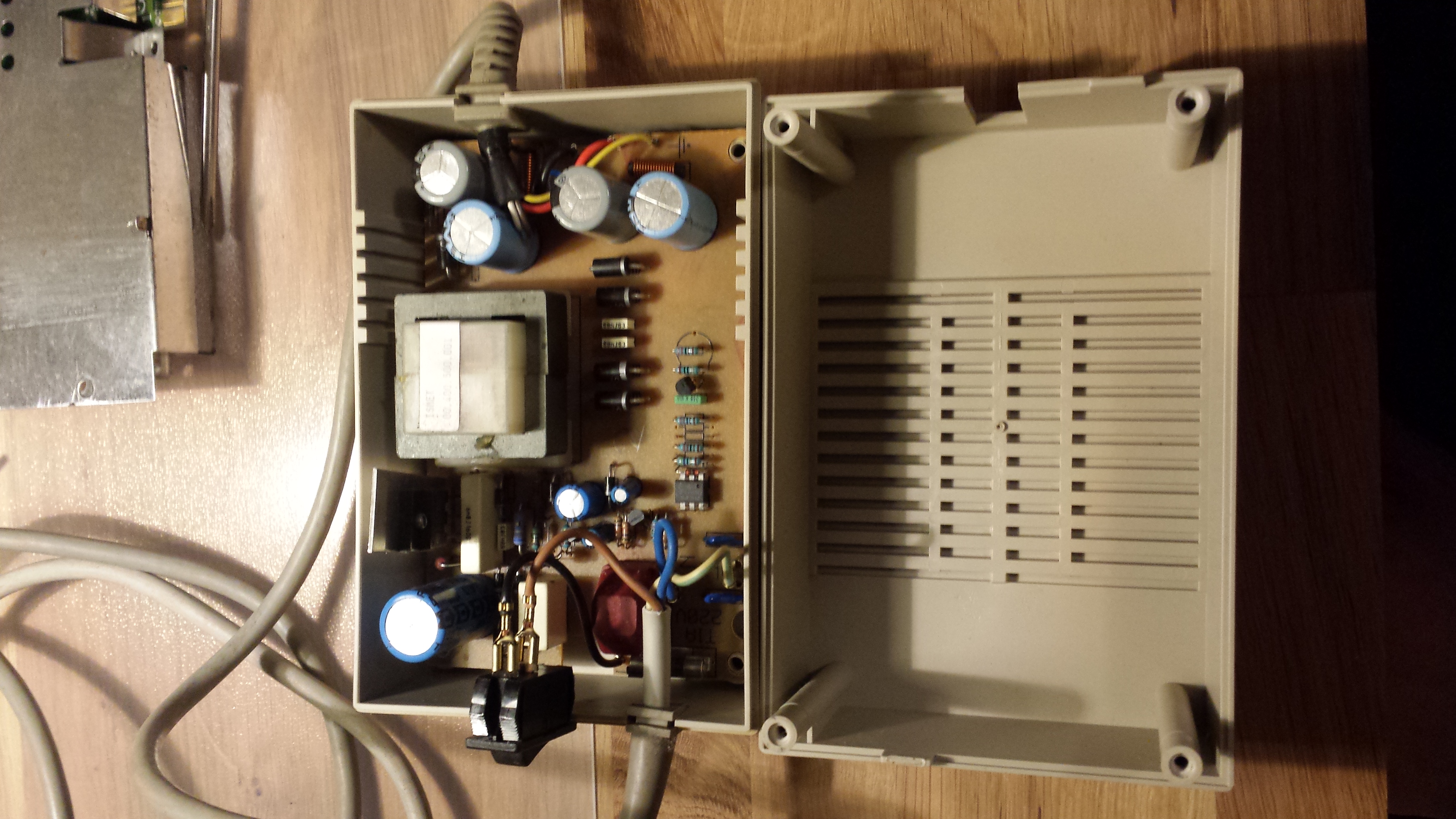

eX_A500_PSU_overview_01 Amiga 500 Power Supply Unit (PSU). This particular one is an old one -  labeled 'Made in West Germany'. ;-)
1
Amiga 500 Power Supply Unit (PSU). This particular one is an old one - labeled 'Made in West Germany'. ;-)

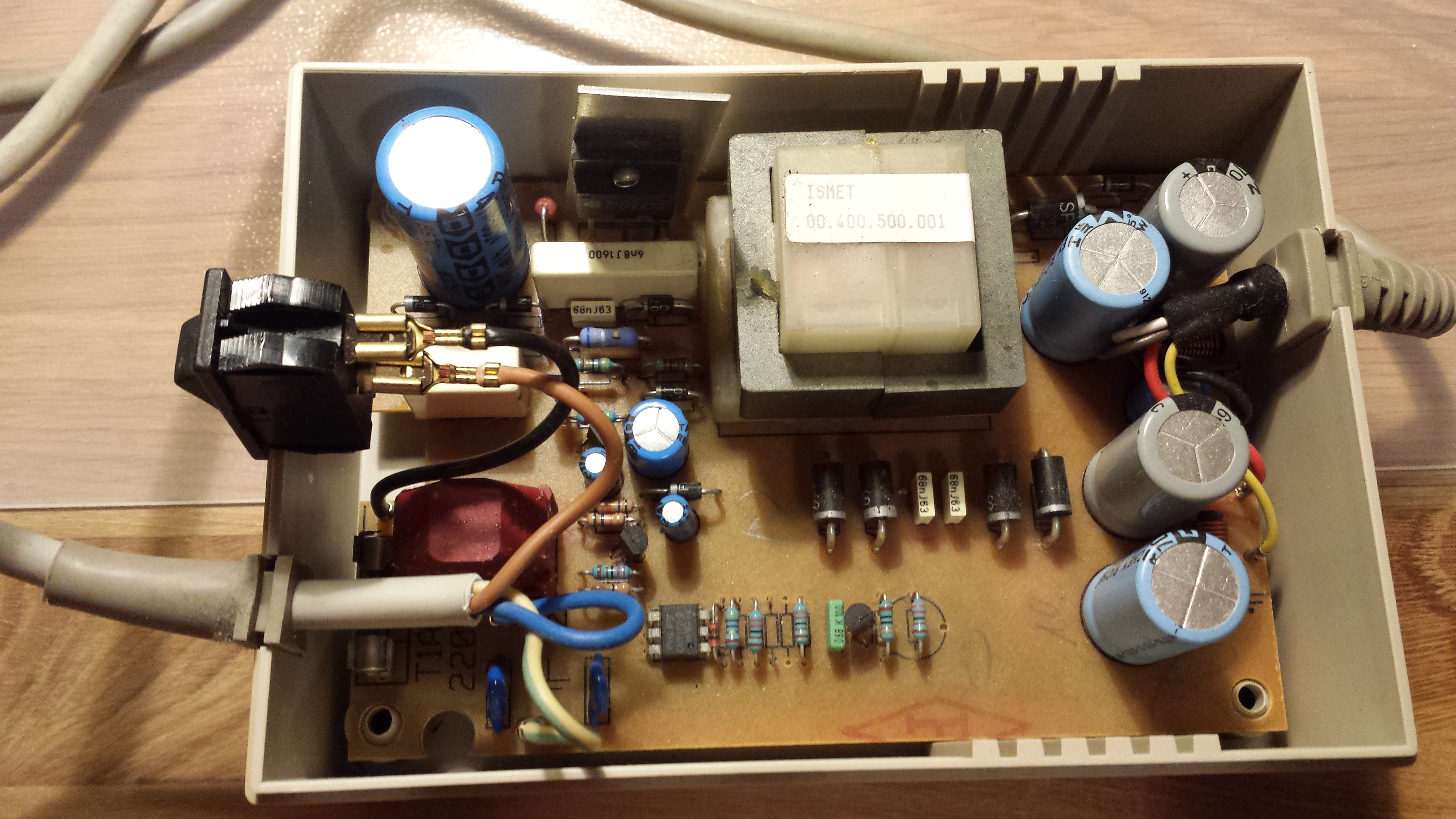

eX_A500_PSU_inside_01 A500 PSU, overview of the insiide.
2
A500 PSU, overview of the insiide.

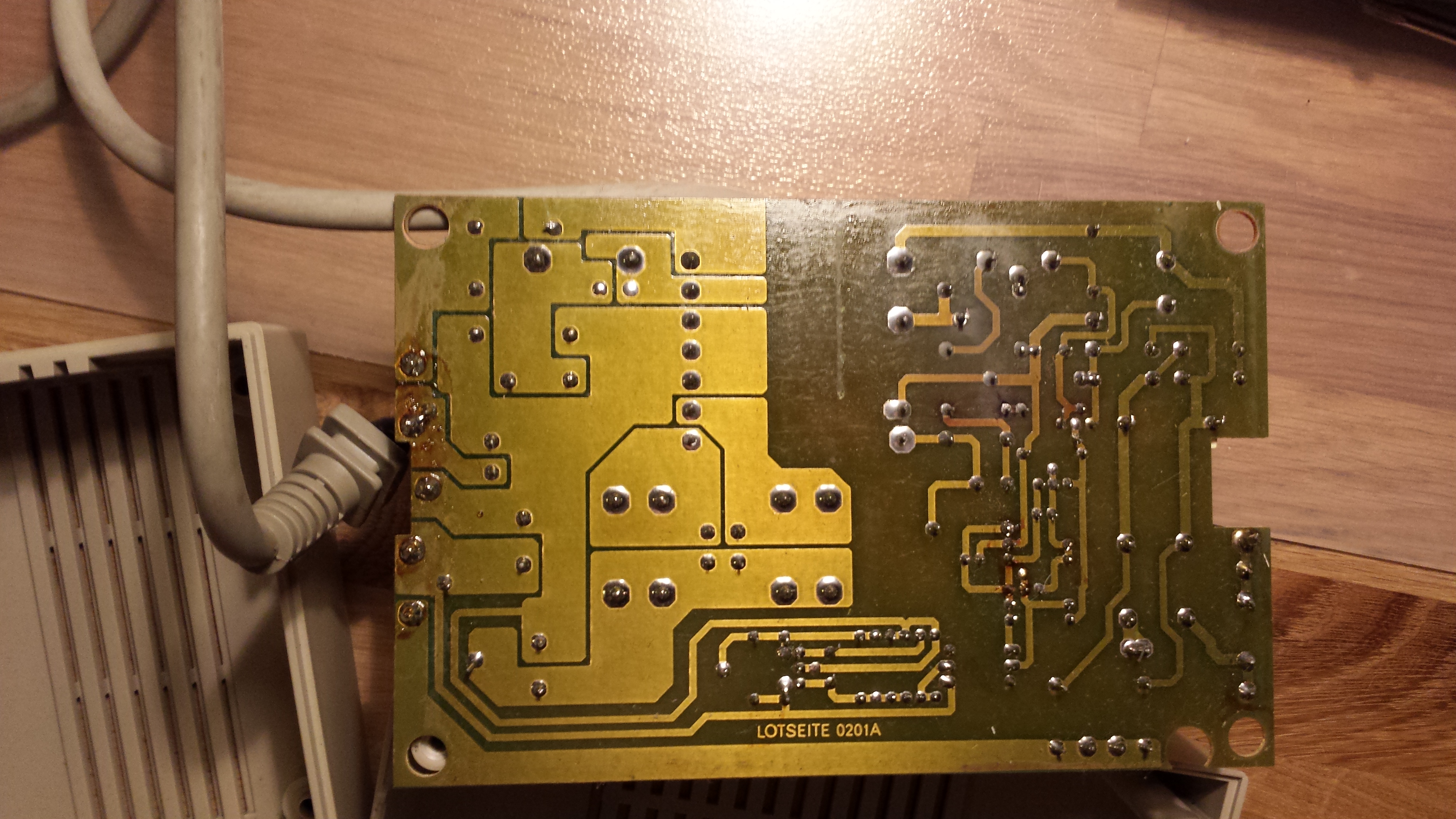

eX_A500_PSU_backside_board_01 A500 PSU. This is the backside of the main circuit-board.
3
A500 PSU. This is the backside of the main circuit-board.

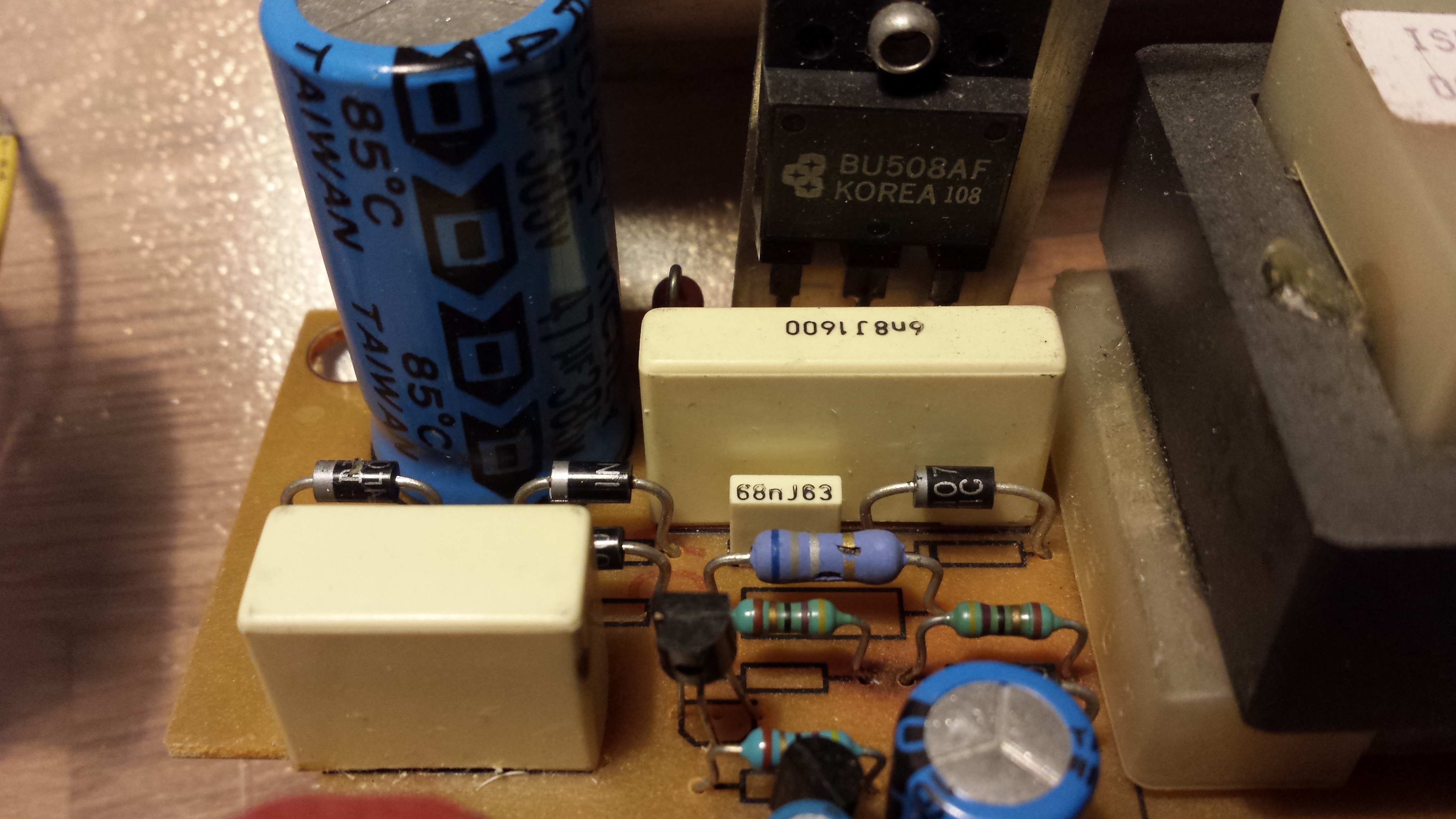

eX_A500_PSU_closeup_01 A500 PSU. Close up of some of the resistors and capacitors.
4
A500 PSU. Close up of some of the resistors and capacitors.
